58-to-64-Quarter-Windows58-to-64-Quarter-Windows

Polycarbonate Quarter Window

From: $100.00

We fabricate only the best Polycarbonate Windows for racing.

Cal Look and Flush Mount Polycarbonate Quarter Windows.

Need help selecting the correct year? Click on the Year Selection Guide tab below.



SKU: 7307 Category: Tag: Brand:

Description

 *You Measure Twice, We Cut Once.  Please double check year of body shell and confirm style and year of doors being used.  We are not responsible for incorrect ordering*

     RON LUMMUS RACING has stepped up again with another industry first by introducing “AR” Abrasion Resistant Hard Coated Polycarbonate racing windows for your aircooled Volkswagen. Rule book legal, widely used by NHRA and the aerospace industry. Polycarbonate is a soft material, which is how it absorbs impact. Because of this it scratches easily. Even cleaning an uncoated window can cause scratching.  “AR” hard coat polycarbonate is both abrasion & UV resistant on both sides, resisting yellowing & hazing. Hard coated polycarbonate offers glass like surface hardness coupled with the superior impact strength of polycarbonate with approx. a 50% weight savings and increased driver safety compared to glass.
 Available in Drag Racing “Flush Mount” style, all windows are 1/8 “ Polycarbonate with beveled edges and pre drilled mounting holes . Clear film coated and ready to border paint.
 And Cal- Look style with straight cut edges that use stock OEM window rubber with a 3/16” thick front window & 1/8” doors, quarters, & rear windows.
     Our polycarbonate quarter windows are the ultimate in optic quality, aerodynamics, stock appearance, and easy installation. All RLR Polycarbonate quarter windows are available to order with or without “ AR Hard Coat Finish” on both sides,  however we do recommend AR Hard Coat on all Polycarbonate Front windows
Flush Mount Kits are NHRA legal, offer minimal wind resistance and maximum weight reduction. Kits require border painting and rivet mounting holes to be drilled to car body.
*(photo may vary from actual product)



Additional information

Weight 30 lbs
Dimensions 36 × 20 × 4 in

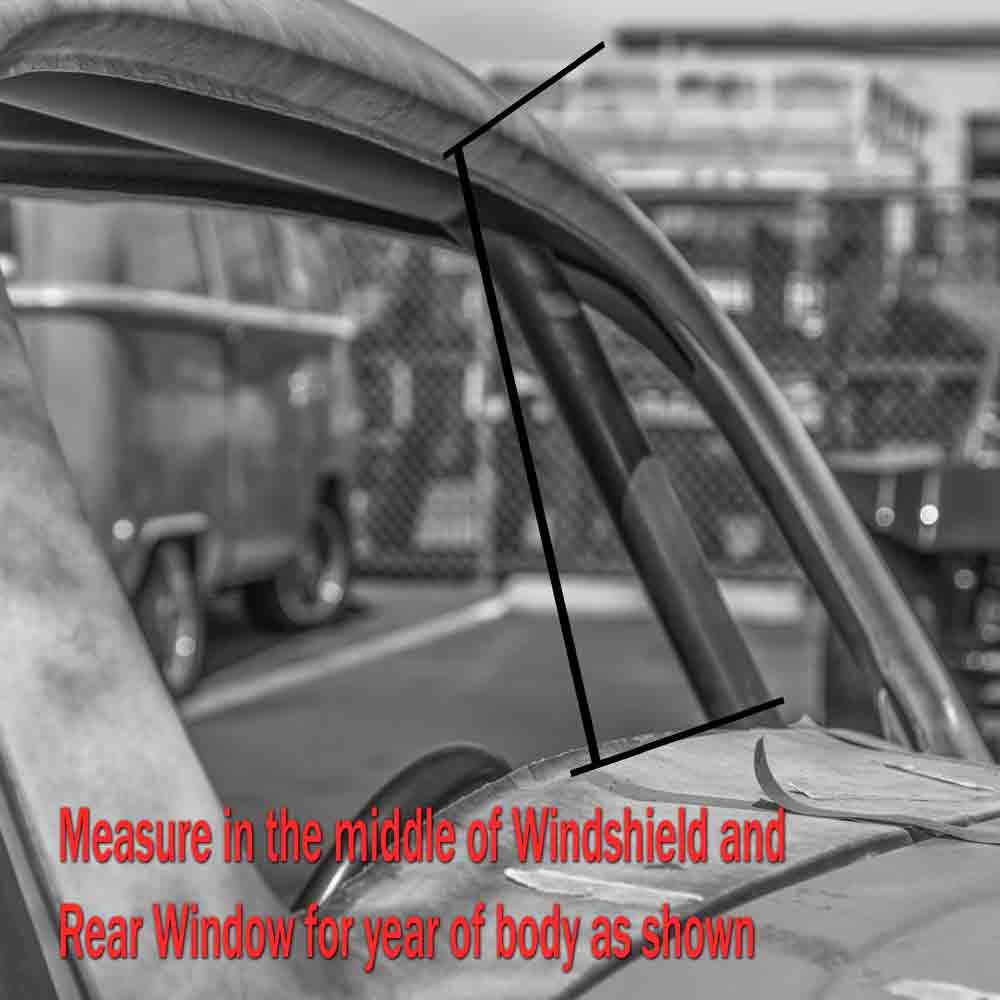

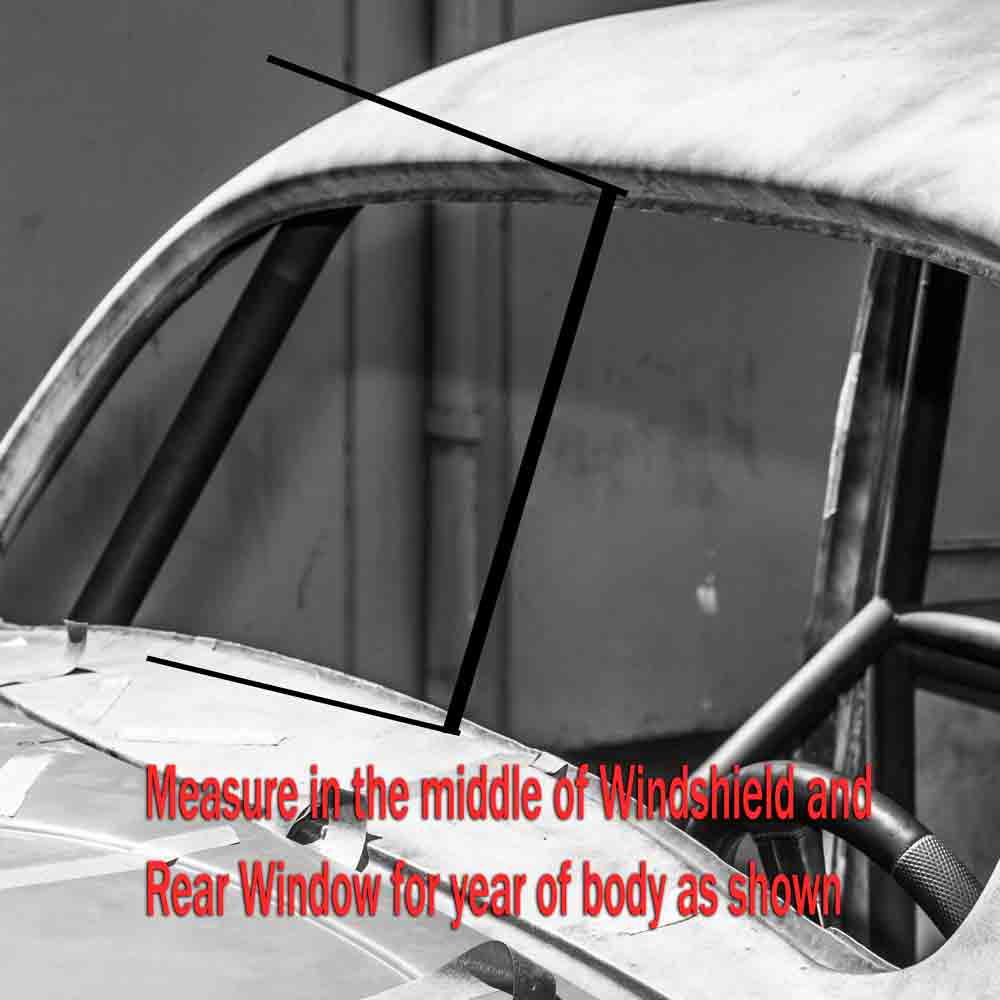

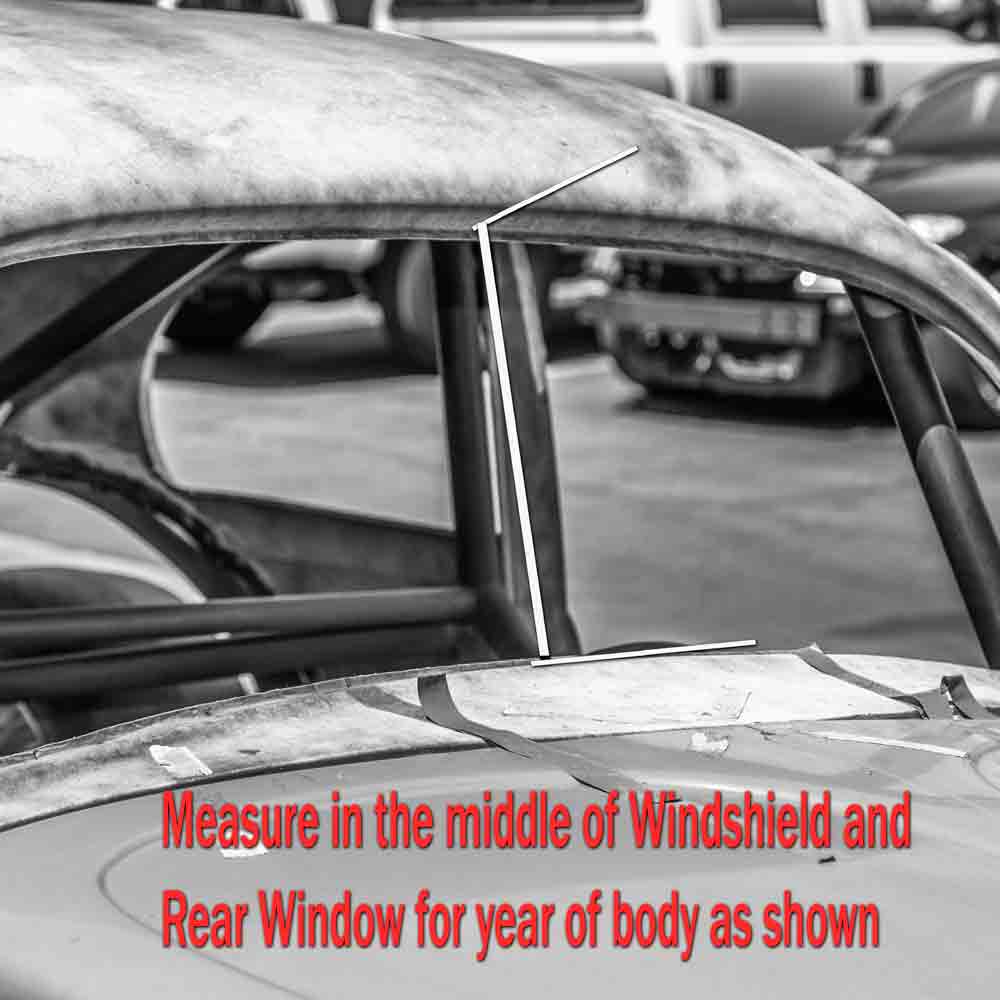

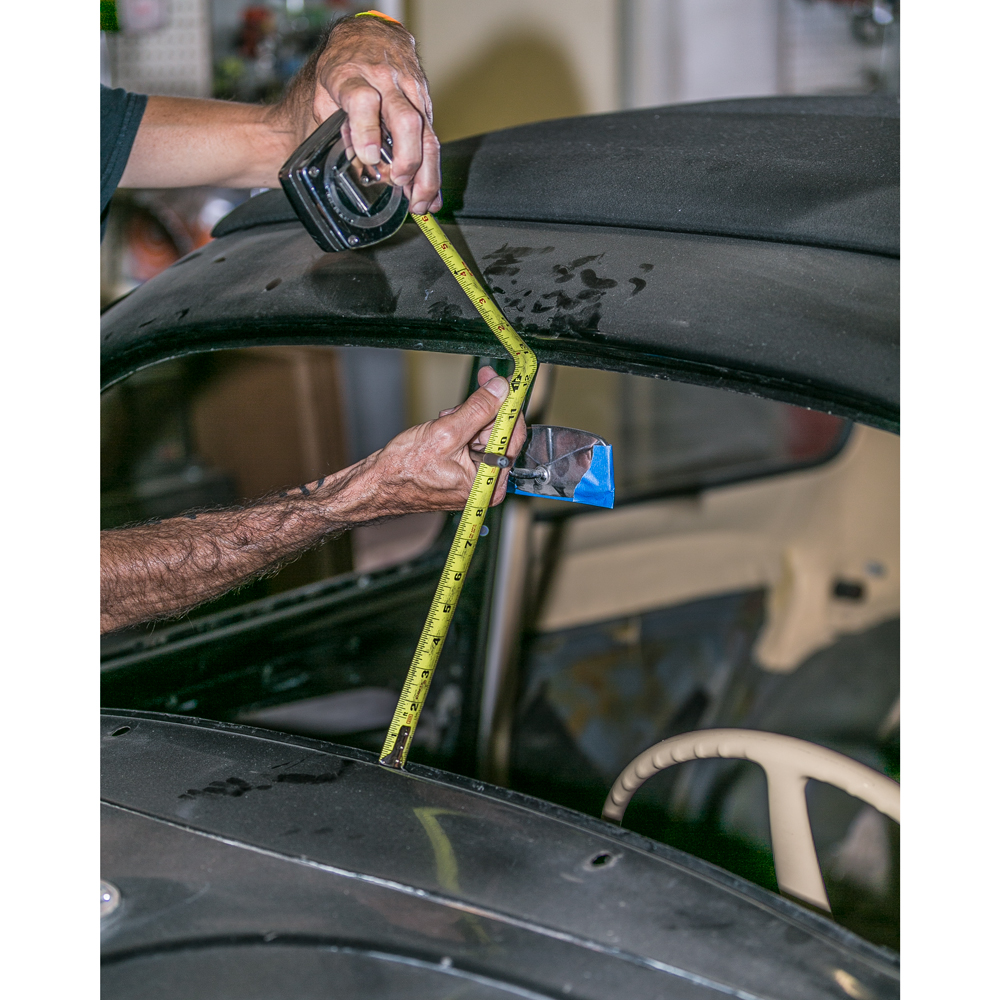

Year Selection Guide

If you are not sure of year, use guide below.  If You Have A 1971 Super Beetle Check The Size Of The Back Window Before Ordering. Late 71 Supers Have The Larger 1972 Size Rear Window.

* (No Super Beetle Curved Windshield).

*This guide is provided as a reference only.  You are responsible for knowing what year, body, door style and windows you need.



Window Size    Year
Front      /        Rear Type 1 Bug
 13″      /   11 1/2″ (Oval) Up to 57′
14 3/8″    /   15 1/2″ 58′ to 64′
15 1/2″   /    16 1/2″ 65′ to 71′
15 1/2″  /      18 1/2″ 72′ to 77′  (No Super Beetle Curved Windshield)
Front               Rear        Notchback
20 1/4″  /      19 5/8″ 64′ to 67′

Specifications

Flush Mount Window Kits include:

  • 1/8” Polycarbonate with Flush Mount Beveled Edge & Pre-Drilled Mounting Holes
  • Coated with 2 Sided Protective Film for Quick & Clean Border Painting
  • Rivet Kit Provided
  • Made In The USA

     Most flush mount kits will offer a 35-45 LBS weight reduction over stock O.E.M. factory glass.

*Please double check year of body shell and confirm style and year of doors being used.*

     *You Measure Twice, We Cut Once.  Please double check year of body shell and confirm style and year of doors being used.  We are not responsible for incorrect ordering*

Cal Look Kits are commonly used to replace factory glass in clean street/strip cars and most Sportsman class racers.

*Kits do not include window rubber.*

Cal Look Rubber Mount Windows include:

  • 3/16” Thick Polycarbonate Front Windshield
  • 1/8” Thick Polycarbonate
  • 2 One Piece Door Windows
  • 2 Rear Quarter Windows
  • 1 Rear Window

     Most Cal Look kits offer a 25-35lbs weight reduction over stock O.E.M. factory glass.

ALL RLR POLYCARBONATE WINDOW KITS ARE INTENDED FOR RACING PURPOSES AND NOT LEGAL FOR STREET OR HIGHWAY USE.

Polycarbonate Window Care Guide and Instructions Included.

     *You Measure Twice, We Cut Once.  Please double check year of body shell and confirm style and year of doors being used.  We are not responsible for incorrect ordering*
